At this time we’ll design a easy optical flow-based movement detection system that tracks the movement and provides us displacement information based mostly on optical stream. It helps us in making cameras that shoot video based mostly on the motion of any animal or object or alerts if there’s any slight motion in objects utilizing optics stream.
Many occasions we’d like the movement detection and likewise need to observe the displacement of object and their motion. Human movement detection is straightforward to do as microwave radar and PIR movement sensors are there that observe human movement and alert however for non-living or easy objects, movement monitoring is a bit tough and these are sometimes used and wanted in robotics or in drones.
Like in drones, we use object movement detection to maneuver the drone or make the drone comply with the movement of any transferring car or any object or to hover the drone on a selected object. It’s also helpful in an optical flow-based positioning system. Within the digital camera, we will use it to stabilize the digital camera lens in response to face or object motion utilizing optical stream.
Invoice of Supplies
Optical Move Movement Detection – Coding
First, we have to set up the ESP32 board to Arduino IDE after which open the library supervisor and search ADNS3080 library and set up that.
After set up, embody the ADNS code, then outline the NS pin quantity for the sensor.
Right here I’ve used pin 5 for that, then we create the setup operate the place we’ll begin the serial port with a baud charge of 9600 or every other baud charge of your selection after which we’ll create the loop operate the place we’ll test the optical stream sensor information and course of the frames from the optical stream sensor and attempt to get the movement information if there’s movement.
Then we may also attempt to get the displacement within the 2D x and y-axis.

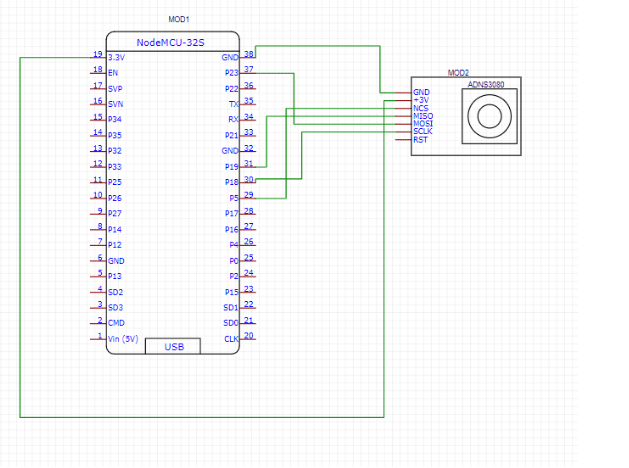

Movement Detection System – Circuit Diagram
Now we join the optical stream sensor module with esp32 in response to the next circuit diagram-
Optical Move-based Movement Estimation – Testing
Now add the code by deciding on the suitable port and board after which press the boot button to carry the ESP32 board into boot mode to add the code.
Now after importing the code, open the serial monitor after which transfer the hand or object within the entrance optical stream sensor, it’ll present you the movement and the displacement information within the x and y-axis within the serial monitor.
Obtain Code
