A Small Transportable IoT Well being Sticker

ashwiniMonitoring well being of an individual constantly 24 hours a day and day by day of the week isn’t simple for even medical doctors and researchers, until the particular person is beneath care in a hospital or clinic. For a typical particular person wishing to observe his or her well being in regular everyday life, it turns into much more tough as a result of most cardiac and different well being screens should not transportable. These can’t be left hooked up to an individual’s physique entire day for steady monitoring.

So, right here is how one can design and make a small IoT-enabled monitor you can keep on with your physique to seize your well being information. It is going to seize information like heartbeat and physique temperature in actual time and present it in your telephone or some other machine that may be linked to Wi-Fi. It may be used anyplace to observe the well being parameters on a steady foundation. The creator’s prototype is proven in Fig. 1.

Fig. 2 exhibits circuit diagram of the IoT well being sticker, which is constructed round ESP12F (MOD1 ), MAX 301002 (MOD2), and MCP73812T (MOD3) ICs. The circuit has two elements—the IoT sensor battery charger (left facet) and the IoT sensor sticker.

Fig. 2: The two parts of health sticker circuit
Fig. 2: The 2 elements of well being sticker circuit

After connecting the elements as per circuit diagram, interconnect the charger and sensor circuits. The charging circuit has battery connector JP1, which is linked to the IoT sensor chip circuit by way of swap S1. Join the battery’s constructive terminal by means of wire to pin 1 of JP1 and the damaging terminal by means of one other wire to the battery connector.

Fig. 3: Code for setting the Wi-Fi SSID and ESP server
Fig. 3: Code for setting the Wi-Fi SSID and ESP server

Software program

You could put together the code for IoT sticker and Arduino IDE. To put in the Arduino IDE and ESP8266 board, open the library supervisor and set up ESP-DASH and Sparkfun Max301x libraries. Embrace the Max3015 library and ESP-DASH within the code. Then arrange the SSID and password of your telephone Wi-Fi (scorching spot) or house Wi-Fi. To be cellular you could use telephone Wi-Fi, however if you wish to monitor at house solely you could use the house Wi-Fi.

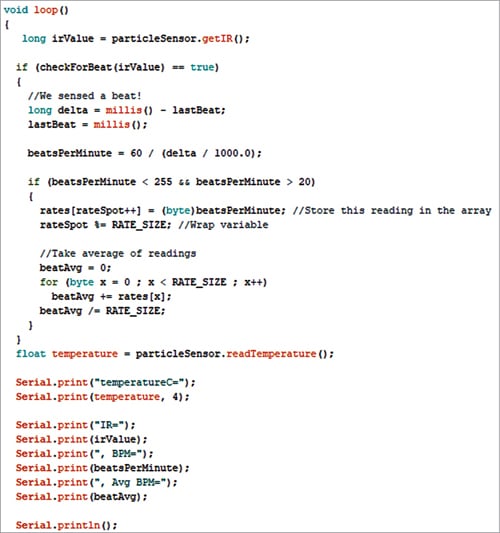

Fig. 4: Code snippet for updating the sensor data in web dashboard
Fig. 4: Code snippet for updating the sensor information in net dashboard

If you wish to join your telephone to this monitoring machine, you’ll be able to set the Wi-Fi in STA mode. Set the playing cards’ names within the net web page UI. You could to point out the center fee, common coronary heart fee, and physique temperature information. So, create the playing cards for these to point out in an internet web page hosted by ESP-DASH.

Elements Amount Description
ESP12F (MOD1 ) 1 Wi-Fi MCU SMD chip
MAX 301002 (MOD2) 1 Well being sensor module
MCP73812T (MOD3) 1 Cell charging SMD chip
LED1, LED2, LED3 3 SMD LED
4.7µF capacitor (C1, C2) 2 SMD capacitor
Resistor 100Ω (R1) 1 SMD resistor
Resistor 470Ω (R2) 1 SMD resistor
Resistor 2kΩ (R3) 1 SMD resistor
Slide swap (S1) 1 SPST slide swap
Jumper 2-pin male 1 Connector
3.3V battery 1 LiPo rechargeable

Now create the setup operate and initialise the I2C reference to the Max sensor module and host the UI webpage. Within the loop, test the sensor information and replace it within the webpage UI playing cards. Put the ESP32 in programming mode and join the ESP chip to FTDI. Choose the ESP8266 board in Arduino IDE and choose the correct port and add the supply code healthtest.ino.

Building and testing

After importing the supply code, solder all of the elements and join the battery. Make a small, skinny sticker utilizing a sticking tape obtainable at chemists to be used on pores and skin to stay it as proven in Fig. 5 and Fig. 6.

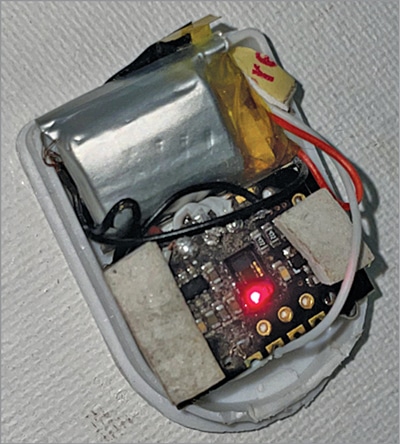

Fig. 5: Author’s prototype for the sticker with battery
Fig. 5: Writer’s prototype for the sticker with battery

Cost the machine and slide the swap on the machine to on place. You could now stick the IoT well being monitor in your forearm or higher arm.

Fig. 6: The author using the device
Fig. 6: The creator utilizing the machine

Anticipate the machine to get linked after which seek for the IP tackle within the browser. You must have the ability to see your well being information in your telephone or some other machine you could have linked. Fig. 7 exhibits how the real-time information appears to be like like.

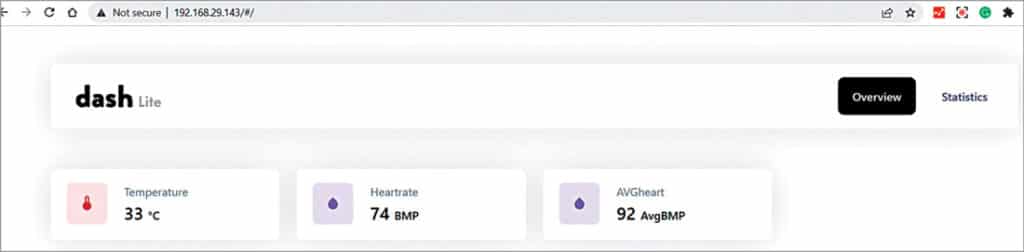

Fig. 7: The device showing real-time health data
Fig. 7: The machine displaying real-time well being information

Bonus. A design with extra capabilities and a market-ready PCB design is out there on this hyperlink.

Obtain supply code


Ashwini Kumar Sinha is an IoT and AI fanatic tech journalist at EFY
