This can be a widespread sight at massive buildings, similar to buying malls and 5-star lodges, the place the doorway for employees and common distributors has a growth barrier. The workers automobiles and different common automobiles should decelerate and wait close to an infra-red (IR) scanner, which reads the faint radiation of an IR tag pasted on the automobile’s windshield. The growth barrier opens if the tag is present in its database. The method is kind of environment friendly and works unhindered. Nevertheless, the one flip facet is that the method doesn’t work when there is no such thing as a tag, or the tag is broken, or it can’t be recognized for some purpose.
The system proposed right here takes care of such issues. When a automobile approaches the growth barrier, a speaker mechanically asks the motive force to decelerate and cease briefly inside 4 metres of the scanner. A high-fidelity digicam then reads the automobile’s registration quantity on its registration plate and checks whether or not it’s there in its database. If the quantity is discovered within the database, the growth barrier opens mechanically and the motive force is advised on the loudspeaker to proceed.
At any time when a brand new unregistered automobile arrives, its registration quantity is up to date within the database (if the customer is anticipated to go to usually henceforth) and the method retains working. This technique requires no IR tag, no pasting of the tag on automobiles’ windscreens, and no massive disk antenna for an IR scanner on the gate. The method might be additional refined, in order that the automobiles needn’t cease in any respect, through the use of a greater digicam and pc.
Invoice of Materials:
Elements
Amount
Raspberry Pi 3 or Pi 4 pc with 4 / 8GB RAM
1
Raspberry Pi digicam
1
HC-SR04 ultrasonic sensor
1
7-inch touchscreen for Raspberry Pi
1
5V, 2A DC energy provide
1
Speaker
1
To realize this, a strong Raspberry Pi 4 pc is required for this challenge. For measuring distance, the identical picture analytic might be deployed. However to make course of easy, deployment of an HC-SR04 ultrasonic sensor is really useful. The second a automobile comes inside 4 metres distance, the digicam takes a frontal image of the automobile and compares its registration plate quantity with the already accessible numbers in its database.
HC-SR04 can’t measure past 4 metres. To make it measure past that, say, as much as six metres, it may be fitted on a two-metre lengthy pole with wires in entrance of the digicam on the facet of the passage such that when the barrier opens, it should go up with the barrier.
You should utilize voice synthesizer ‘espeak’ to subject voice directions to the drivers. The directions might be like welcome, decelerate, come nearer, drive away, and many others.
To extend vary of measurement additional, from six metres to 12 metres, a TFMini–S (3.4-degree aperture) digicam can be utilized, although a 4 to 6 metres distance is mostly good for this sort of exercise. In case of an IR tag system, the efficient distance is about two metres solely from the scanner. That’s why the automobile drivers are sometimes requested to maneuver nearer.
If anybody thinks that by holding a registration plate in hand one can idiot the system, that isn’t potential in any respect. The automotive classifier mannequin “haarcascade_russian_plate_number.xml” is used right here to determine the automotive first after which the quantity plate is recognized, scooped, and browse by this technique.
The writer’s prototype is proven in Fig. 1. The parts wanted for the challenge are listed beneath the Invoice of Materials desk. Fig. 2 reveals the circuit diagram of the challenge.
Fig. 1: Creator’s prototype
Right here, for testing the challenge, an LED is getting used as a sign for the cease barrier’s working. In actual deployment, you need to use a relay and a linear actuator to open the gate barrier.
Fig. 2: Circuit diagram of challenge
As proven in Fig. 2, join the HDMI show to the Raspberry Pi HDMI and the ultrasonic sensor to Raspberry Pi GPIO pin. Then join the digicam to the digicam port utilizing the ribbon cable supplied with the digicam. You may join the actuator LED to the pin for the gate open or shut actions. The photographs of the LCD, the ultrasonic sensor, and the digicam are proven in Fig. 3, Fig. 4, and Fig. 5, respectively.

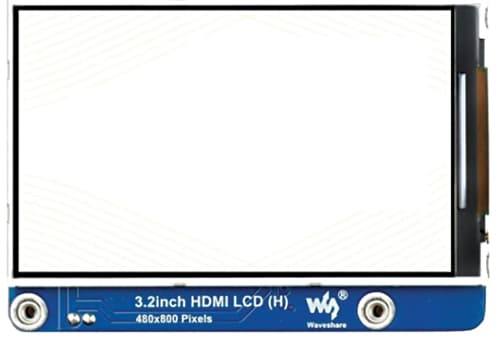

Fig. 3: LCD show

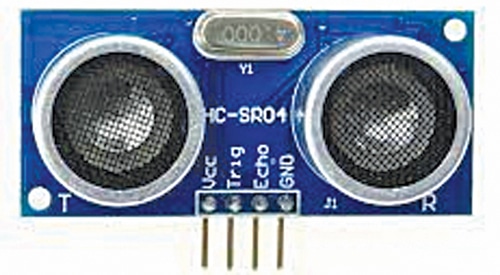

Fig. 4: Ultrasonic sensor
Fig. 5: Raspberry Pi
The software program for this challenge is ready in Python IDLE and modules like opencv2, espeak, PiCamera, gpiozero, pytesseract, tesseract-ocr, and numpy are used. As all of those are open supply software program, they are often put in simply by the next instructions on any Raspberry Pi pc utilizing Linux.
# sudo apt-get replace # sudo apt-get improve # sudo pip3 set up pillow # sudo pip3 set up pytesseract # sudo apt-get set up tesseract-ocr # sudo pip3 set up opencv-python # sudo pip3 set up numpy # sudo apt-get set up espeak # sudo apt set up python3-gpiozero # sudo pip3 set up gpiozero # sudo apt-get set up python3-picamera
With the Python code created, open the digicam and verify the automobile’s quantity plate. First, the HC-SR04 checks whether or not the automobile is inside 4 to 6 metres of the digicam or not. If not, the system will ask the motive force to convey the automobile nearer, inside the required distance.
As soon as the automobile is in place, the digicam takes an image of the entrance of the automobile and checks whether or not it’s certainly a automobile. If it finds it certainly to be a automobile, it zooms on its quantity plate and analyses the quantity plate. It removes characters similar to ‘-‘ and ‘ ‘ from the quantity and shows it on the system. The database of the identified quantity plates is stored prepared in a string array [carpool] separated by commas. Every quantity ingredient of the database is in contrast in opposition to this quantity to seek out out the match.
Our database being a small one, is managed within the following one-string array, known as carpool, which may maintain as much as 200 numbers comfortably:
carpool=[‘OR06F4630’,’UP16BY0538’,’MP10CA4768’,’MH03AW2684’,’MHO3AW2684’]If a match is discovered, it should set off the GPIO21 pin to open the gate or shut it. There are various extra GPIO pins accessible, which can be utilized for a number of triggering of the growth barrier or the gate mechanism—like inexperienced mild, purple mild, gate open, gate shut, and many others.
Throughout precise deployment, the writer discovered that for an inexpensive high quality digicam, the lighting creates a problem. What is evident throughout day hours turns into unclear throughout nighttime. Nevertheless, with good-quality digicam the issue is overcome. In his prototype, the writer used a digicam that had IR mild supply connected, which gave an additional edge throughout nighttime detection.
A 5-metre digicam extension twine was used for the prototype, in order that the digicam may very well be positioned on the centre of the growth barrier for correct detection. The TFT touchscreen, the keyboard, mouse, and many others are all non-compulsory. As soon as the challenge is deployed for an precise operation, all these might be stripped off the pc.
Raspberry Pi 4 or Pi 3 can be utilized for this challenge. The speaker is to be inserted in its earphone jack. An amplifier or Bluetooth Amplibox can be utilized for louder and clear voice copy. The espeak synthesizer has many choices, similar to “espeak”,”-ven+f3”, “abcdefgh 1234567890”
“- ven+f3” is for feminine voice copy. You may search the web for extra choices. The Python supply code’s snippet is proven in Fig. 6.

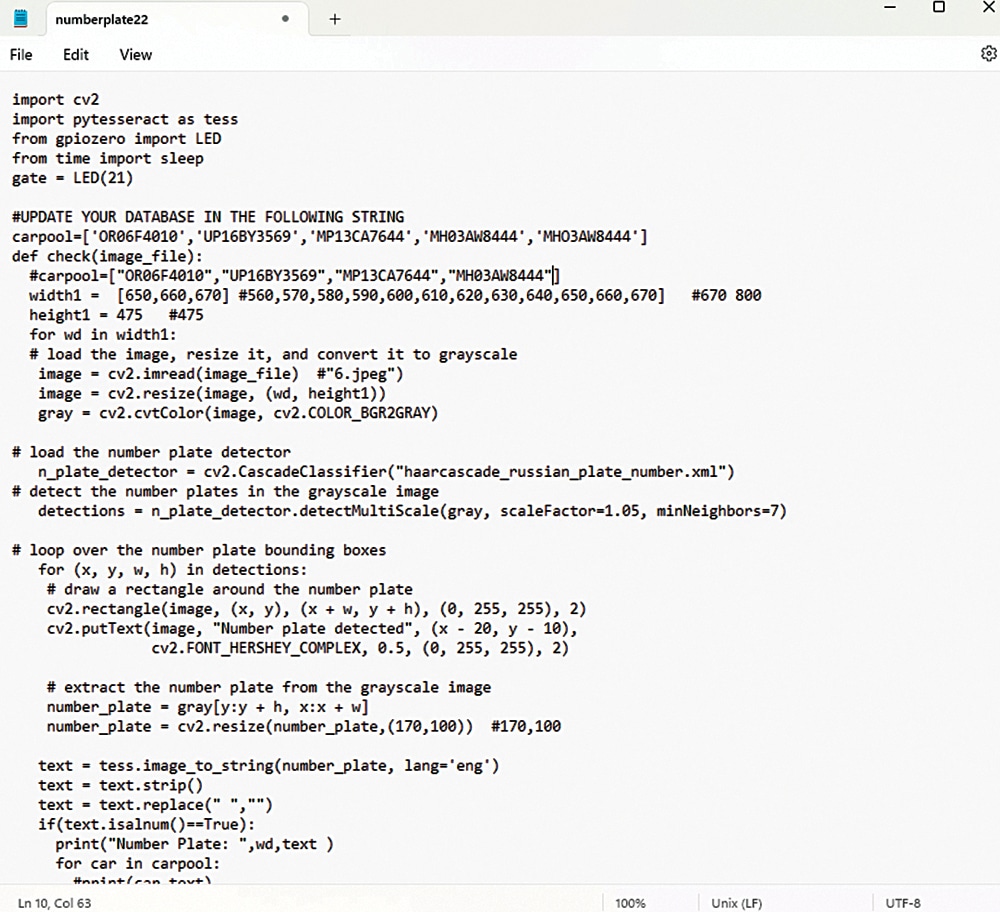

Fig. 6: Python code’s snippet
Testing
To check the system, run the code after connecting energy to the Raspberry Pi. The automotive with the quantity plate proven in Fig. 7 is likely one of the a number of automobiles with which the writer examined his prototype. Every automotive was requested to decelerate between 4 and metres from the digicam. The prototype was in a position to aptly determine the automotive and its quantity plate and in contrast it with carpool array to set off the GPIO-21 of the Raspberry Pi pc. However typically it mistook 0 (zero) for O (O for onion). This may be tackled in logical degree, such that the letters at 3,4,7,8,9,10 positions are thought-about to be solely and the remaining as alphabets. The principle Python script automatic-numberplate identification.py runs continuous.

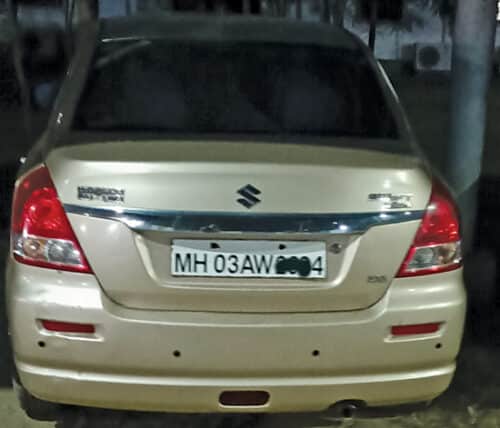

Fig. 7: Automobile and quantity plate being detected

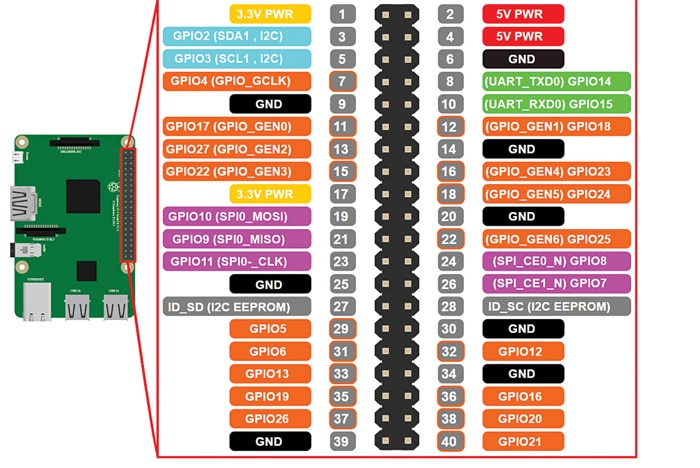

Fig. 8: Pins of Raspberry pi
Fig. 8 reveals pins’ description of the Raspberry Pi used throughout testing.
Obtain Supply code
Somnath Bera, Basic Supervisor at NTPC, is an fanatic of IoT and electronics
