Welcome to our DIY challenge information for creating an correct time show utilizing ESP32 RTC. On this tutorial, we’ll present you tips on how to construct your personal millisecond clock that ensures exact timekeeping. By using the ESP32 RTC (Actual-Time Clock) module, you’ll be capable of obtain millisecond precision, guaranteeing that your clock shows probably the most correct time doable.
Whether or not you might have a particular want for exact timekeeping or just get pleasure from tinkering with electronics, this challenge is ideal for anybody keen on creating their very own time show system. Be part of us as we take you thru a step-by-step information, offering all the knowledge you should carry this DIY millisecond clock to life utilizing the versatile ESP32 RTC.
Get able to embark on a rewarding journey of timekeeping accuracy!
We’re fascinated by clocks and have made clocks of a number of varieties, however by no means with a millisecond show because of the enormous processing energy required for it. We had been delighted once we might efficiently run the 8.9cm (3.5-inch) ILI9488 TFT show in 8-bit mode with an ESP32 microcontroller. In 8-bit mode, it wants 12 GPIO pins for the show and it is rather quick, and there lies the success of this millisecond show clock.
The 8.9cm TFT LCD touchscreen show defend for Arduino Uno is on the market out there. Though the TFT show suits very simply on Arduino Uno, a millisecond show just isn’t possible on Arduino Uno because it lacks computing energy. So, the ESP32 and DS RTC modules are used to assist the machine in calculating right down to milliseconds and show it in real-time.
So, in contrast to different good clocks, you could have in your house, this clock will assist you get an correct time as much as milliseconds. You need to use it as a stopwatch as effectively.
The prototype is proven in Fig. 1, whereas Fig. 2 reveals the TFT show used within the challenge.
Elements Required to Construct Millisecond Clock
The parts required to construct it are talked about within the Invoice of Materials desk beneath.
| Desk 1: Invoice of Materials | |
| Elements | Amount |
| ILI9488 TFT show (MOD3) | 1 |
| ESP32S (MOD1) | 1 |
| RTC DS3231 module (MOD2) | 1 |
| Micro USB cable | 1 |
| Coin cell | 1 |
DIY Millisecond Clock – Code
First, the code is made to speak with the RTC DS3231 module and fetch the time from it. After that communication is established with the LCD show. The loop makes the clock perform, and it shows the time precisely to a millisecond.

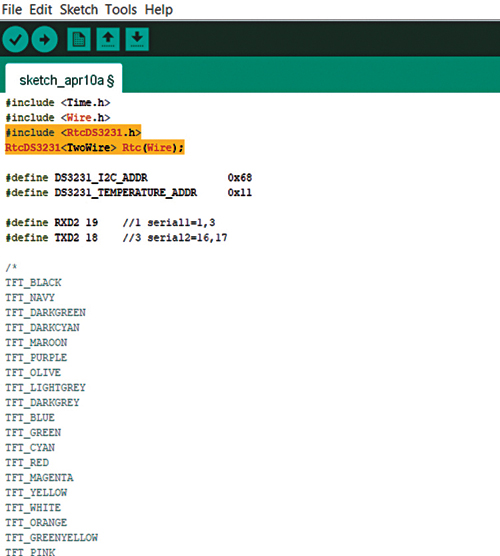

After making ready the supply code, add it to ESP32 by choosing the ESP32S board and ESP port quantity in Arduino IDE. Fig. 3 reveals a snippet of the supply code.
After importing the supply code, join the RTC DS3231 module to the I2C pins of the ESP32 board. Additionally, join the TFT LCD show with the ESP32 board. The pinouts of the TFT and ESP32 board are proven in Desk 2.
| Desk 2: Pin Connections of ESP32 and ILI9488 TFT Show | |
| ILI9488 TFT Show Pin | ESP32S Pin |
| 3.3V | 3.3V |
| Gnd | Gnd |
| D0 | 7 |
| D1 | 8 |
| D2 | 1 |
| D3 | 2 |
| D4 | 3 |
| D5 | 4 |
| D6 | 5 |
| D7 | 6 |
| CS | 15 |
| DC | 0 (preserve empty) |
| RST | 14 |
| WR | 17 |
| RD | 18 |
DIY Millisecond Clock Circuit Diagram
Fig. 4 reveals the circuit diagram of the challenge, which is constructed round ESP32S (MOD1), ILI9488 TFT show (MOD3), and RTC DS3231 module (MOD2).
The clock could be powered with a 5V battery or a USB. After powering up, the time is calculated by RTC DS3231. This RTC has the potential of measuring temperature as effectively, which can also be displayed on the TFT.
The time length between consecutive seconds is split by 1,000 to calculate the time in milliseconds and displayed on the TFT. The easy line drawing is tricked to create a thick line, which is put right into a variable perform. Fig. 5 reveals the ultimate TFT clock made by the creator.
Obtain Supply Code
You too can test different Attention-grabbing DIY Smartwatch Initiatives we construct beforehand:
The creator Somnath Bera is an electronics and IoT fanatic working as Common Supervisor at NTPC
