ESP32 As Digital camera Webserver

ESP32 As Digital camera WebserverThis small-size programmable digital camera can begin taking photos when movement is detected and transmit real-time movies. It may be hidden simply for espionage work attributable to its tiny measurement.

The webserver digital camera might be designed in two variations. The primary model described right here can ship real-time video over Wi-Fi. The creator’s prototype is proven in Fig. 1.

The software program code required for this webcam server is made in Arduino IDE. So, we first want to put in the ESP32 to Arduino IDE by opening Preferences and pasting the next hyperlink right here.

Subsequent, open Board Supervisor, search ESP32 and set up the board to Arduino IDE. After putting in the most recent Arduino IDE and deciding on board for ESP32, if you happen to go to “file→example→ esp32→camera→webserver” you will note the ESP32 webcam challenge, which is already obtainable there.

Add the code to ESP32 cam and search the tackle of ESP32 cam within the net browser. You may see the dwell video from ESP32 cam.

Within the authentic code of ESP cam there was no multiplicity of Wi-Fi community decisions and there was no approach to know the IP tackle of the webcam, until it was linked to a PC to see the serial terminal output. So, you’ll be able to modify the code and add the code for the ESP32 to robotically connect with the very best obtainable Wi-Fi amongst all of the networks in vary.

To change, you have to substitute the Wi-Fi SSID community names within the checklist and their passwords with your individual Wi-Fi community’s title and password. Then add the OLED show library in that. Subsequent, get the IP tackle within the setup perform and add the code line to show the IP tackle on the OLED show. The supply code snippet is proven in Fig. 2.

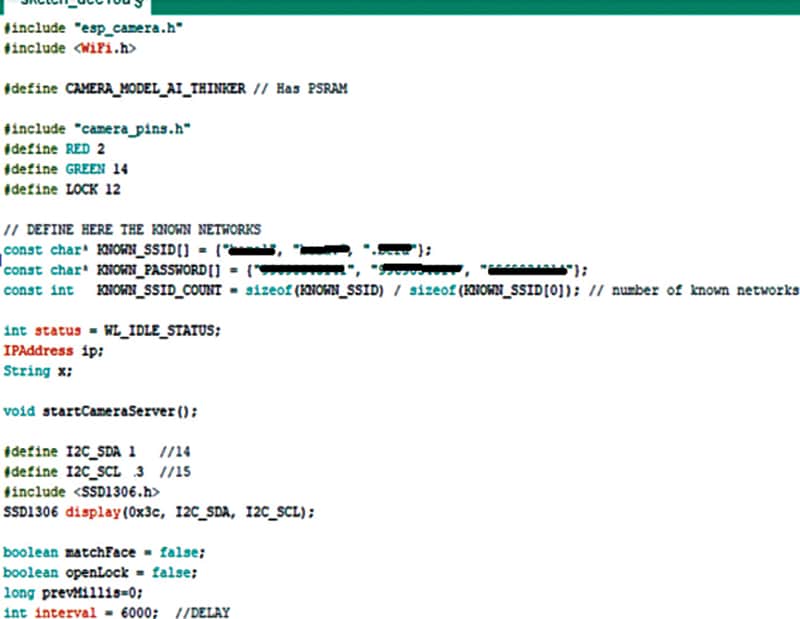

Fig. 2: Code snippet for setting Wi-Fi SSIDs list and passwords
Fig. 2: Code snippet for setting Wi-Fi SSIDs checklist and passwords

Invoice of Materials
Parts Amount Description
ESP32 with digital camera 1 ESP32 cam
OLED show (24.4mm) 1 SSD1306
USB-to-Serial FTDI chip 1 USB programmer
Battery/5V DC adaptor 1 Energy provide
LM11173.3 1 Voltage regulator
Diode 1 1N4007
Capacitor C1 1 100µF, 10V

Circuit and dealing

The circuit diagram for ESP32 digital camera webserver is proven in Fig. 3. The circuit is constructed round voltage regulator LM1117, an OLED, and ESP32 cam. For programming ESP32 you want the USB-to-serial programmer proven in Fig. 4.

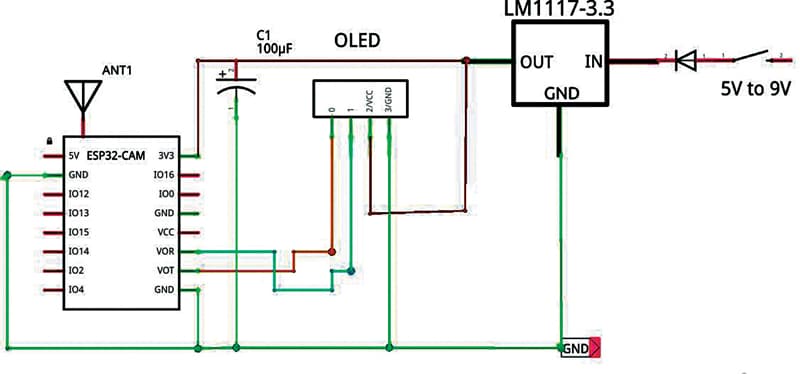

Fig. 3: Circuit diagram of ESP32 camera webserver
Fig. 3: Circuit diagram of ESP32 digital camera webserver

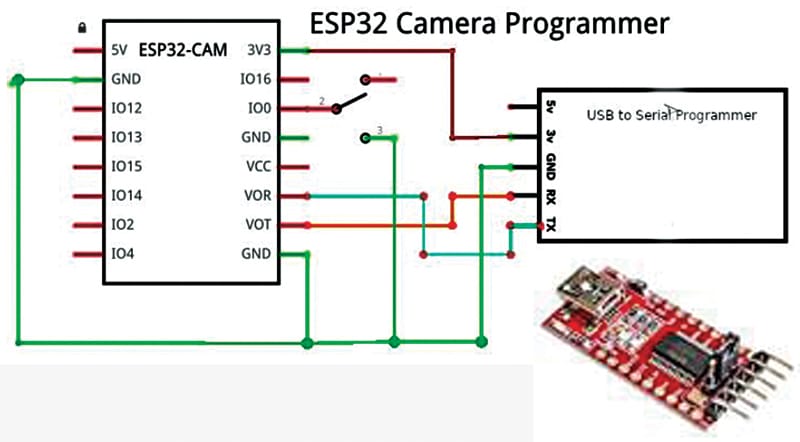

Fig. 4: Schematic of ESP32 cam programming
Fig. 4: Schematic of ESP32 cam programming

Software program

The ESP32 digital camera doesn’t include built-in USB-to-serial interface. Due to this fact, to add the sketch you want a USB-to-serial programmer. The schematic for the programmer is proven in Fig. 3.

The GPIO 0 pin is to be pulled to floor throughout importing mode and reset button of the ESP32 must be pressed for first few seconds of importing. After importing the supply code esp32-webcam-server.ino into ES32 board, take away the board and use it within the circuit.
The machine might be powered utilizing any regulated 5V DC adaptor, or a 6V battery, or a voltage regulator circuit. The SD card module on ESP board makes use of GPIO 4, GPIO 12, and GPIO 13. Solely GPIO 1 and GPIO 3 are the free pins obtainable, which can be utilized as serial pins for importing this system in flash mode. The GPIO1 and GPIO 3 pins are free after importing this system, so we will use them as I2C pins for connecting the OLED show.

Building and testing

Add the supply code esp32-webcam-server.ino into ESP32 as described above. Assemble the circuit as per Fig. 2. On powering the machine to attach it to the Wi-Fi obtainable within the community, it’ll present the IP tackle on the OLED show linked to it.

Now open any net browser in your smartphone or laptop computer and search the IP tackle displayed on OLED show. It is best to be capable of see the dwell video in your telephone/laptop computer. The webcam with OLED to show its community title and IP tackle is proven in Fig. 5.

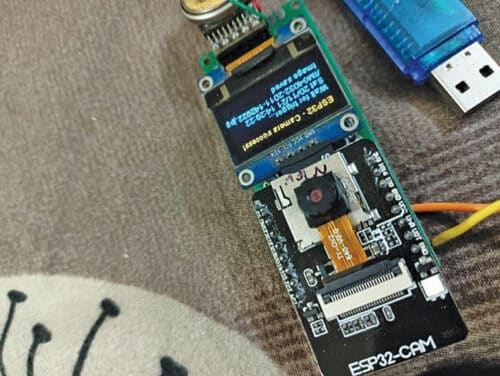

Fig. 5: Webcam with OLED to display
Fig. 5: Webcam with OLED to show

The low-cost ESP32 digital camera has huge potentialities as a result of it’s programable. By fixing a sequence of those cameras in line, we will get a large object scanner of fifty to 100 metres for taking photos of approaching automobiles’ quantity plates to test for over dashing. In solo mode, with a PIR sensor, it may be used as a chook snap catcher. For security in opposition to Covid, it may be used as a scanner for prime temperature detection.

Obtain supply code

Somnath Bera, Normal Supervisor at NTPC, is an IoT and electronics fanatic
