LIDAR-based EV and Autonomous Car Anti-Collision System

With the development of expertise, the driving system can also be getting superior and offering extra security, and the auto-braking function, impediment detection system, and alert system are crucial components of the Autonomous automobile and ADAS techniques.

So we’ve got determined to make a complicated ADAS system with all these security options required for an autonomous automobile security system. Right here we design the system in components to make it easy. That is the primary half the place we interface the LIDAR and make the easy anti collisions system.

Subsequent half we are going to discuss in regards to the connection of the system to the breaks and electronics of your EV, Automotive automobile, and Robotics. Then we are going to proceed additional with the design of the ADAS system with extra radar and dashboard options.

Lidar-based Anti-collision system
Lidar-based Anti-collision and alert system

First, we want the next elements

Invoice of Supplies

LIDAR-based Anti-Collision System BoM
LIDAR-based Anti-Collision System Components

Selecting LIDAR and Understanding Datasheet

Checklist of lidar datasheet of some frequent LIDAR you should use

NOTE:- You may select any of the above LIDAR for this mission all are appropriate with RPI and have Python SDK for improvement

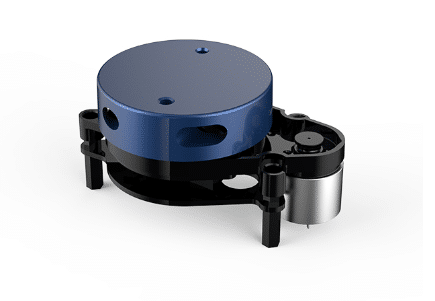

There are many radar and lidar out there out there from varied worth ranges and detection ranges and most of them use USB serial communication. You should utilize any of them as your selection however right here in our design, we use the YDlidar X2. You should utilize RPi Lidar, INTEL Realsense, or some other lidar. All you must do is to search out the datasheet of the LIDAR you’re utilizing after which the PYTHON Module you’re utilizing after which create the code round them. So let’s leap into the info sheet and study to extract the data we want.

For any LIDAR you select to make use of the datasheet is the important thing so let’s extract the datasheet. So go to Google and search the datasheet of the respective LIDAR you’re utilizing. Within the datasheet we will see the desk that tells us its discipline of view ie 360 levels so right here our lidar can sense the space to 360 levels it makes use of a motor to rotate the LASE and get the space at a really quick pace round its surrounding.

Some LIDARs present 250 or 180 levels so you’ll want to select the LIDAR in response to your want so First parameter whereas selecting the LIDAR to your design is to look into the viewing angle you want within the design.

The second factor is available in a spread of lidar and dealing situations. Completely different Lidar makes use of completely different expertise. Some use crimson LASER, some use Doppler waves, and plenty of different applied sciences relying on expertise the sensing situations and vary change so in case you are designing an answer that should detect objects even in a foggy wet atmosphere then you possibly can choose in response to that and vary in response to your want.

LIDAR Specifications
Desk 1. Credit score (

YD LIdarX2

The third factor you’ll want to look into the LIDAR whereas deciding on is the Authorities Coverage and Well being Danger. As knowledgeable beforehand the completely different LIDAR and RADAR makes use of completely different expertise some use IR LAser, some crimson LASER some waves some use mm waves to detect and these would possibly trigger a well being danger and have an effect on the animals and vegetation youngsters so you’ll want to examine these dangers and the Authorities coverage correctly.

LIDAR-based EV and Autonomous Car Anti-Collision System
Fig 3. FDA Ranking of LIDAR (Picture credit score LIDAR datasheet doc)

Additionally Learn: How Lidar Is Enabling Autonomous Drones


Relying on the mannequin of lidar you’re utilizing the connection would possibly varies however most 360-degree laser-based LIDAR makes use of Serial communication and supply a USB port to hook up with your system. As you possibly can see the Fig 4 our LIDAR has 4 pins 2  for energy one for transmitting the info and one to regulate the motor utilizing the sign. This pin additional join to a different port that gives you the USB to attach together with your system.

LIDAR Pinout
Fig 4. LIDAR Pinouts (Picture credit score LIDAR datasheet)

So you’ll want to merely join it with the RPI board. utilizing USB plug


Mounting LIDAR is a crucial and essential half.

Necessary issues to remember whereas mounting a LIDAR in Vechile :

  • Vibration and Stablisation .The info factors of the liger get flawed if the lidar vibrates an excessive amount of so you’ll want to mount the lidar with a rubber pad or some sort of shock-absorbing factor
  • Sansing angle. Principally we put the lidar to sene what in entrance of car and what’s behind automobile you’ll want to mount the LIDAR if its vary round 245 or 180 diploma accordingly. However in case you are utilizing 360 diploma rotation primarily based rader then yu have to mount the LIDAR in response to its Zero level .

Right here our LIDAR Zero angle level proven in fig 6.

LIDAR-based EV and Autonomous Car Anti-Collision System
Fig 6. Lidar Mounting ( Picture credit score:- LIDAR datasheet )
LIDAR-based EV and Autonomous Car Anti-Collision System
Fig 7. LIDAR mounting on automobile

Anti-Collision System – Coding

Now for coding and getting the info and making ADAS and anti-collision system, we want an SBC you possibly can both use NVIDIA Jetson RPI.Now set up the python module ,LIDAR SDK and libraries in response to your LIDAR model and mannequin right here I’m utilizing YDX2 so instal the library for a similar. Subsequent we have to set up the metaplot and numpy library to do mathematical calculations to search out the space and angel knowledge utilizing lidar knowledge

To put in the python modules open terminals and run following

sudo pip3 set up numpy
sudo pip3 set up matplot

Now we have to clone the library of YDLIDARx2

Now we have to create the code to get the info from lidar right here the lidar library have file open it and make the code to ship and think about the angel and distance knowledge to you then make a if situation the place you possibly can examine the the angel and distance of impediment if you wish to maintain the entrance of car at protected distance then use the angle vary round 245 diploma however you need maintain automobile away from the impediment from all facet then merely set the protected distance in if situation in response to that.

You may change and tweak the protected distance in fi situations as per your automobile, automobile and your selection. Below if situation you set the GPIO as output to alert or auto breaking or just print the alert to the python cell saying to drive slowly to keep away from an accident.

Anti-Collision System Code

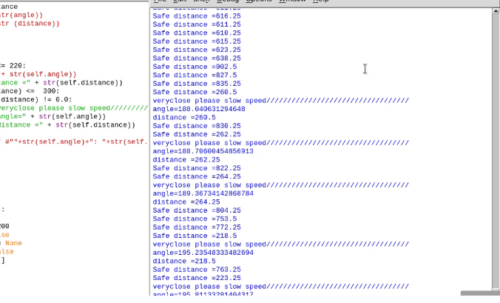

Fig 8. Code extracting and displaying the lidar knowledge

Now in the primary code, you’ll want to set the port identify and baud price right here you’ll want to set the port in response to the USB port identify you join the LIDAR to and the baud price in response to your LIDAR baud price right here my LIDAR baud price is 115200.

LIDAR-based EV and Autonomous Car Anti-Collision System
Fig 9. Code setting port identify and baud price

Now if you wish to visualise the environment captured by lidar then you possibly can dd the next code in the identical code and visualize the environment of automobile or automobile

LIDAR-based EV and Autonomous Car Anti-Collision System
Fig 10. LIDAR mapping surrounding
LIDAR-based EV and Autonomous Car Anti-Collision System
Fig 11.code half to get the map of surrounding utilizing LIDAR knowledge


LIDAR Anti-Collision System Working
LIDAR-based Anti-Collision System Working

LIDAR-based EV and Autonomous Car Anti-Collision System

Now energy the LIDAR and Raspberry pi and run the code now it would begin displaying if the care or particular person comes near it and asks you to decelerate the automobile. in case your need to get the map of surrounding the you possibly can see that as properly.

Congrats !! our first half is prepared, web we combine it with automobile/ EV / Robotic  electronics wiring and braking system

NOTE:- It is a collection mission of growing the ADAS system for autonomous automobiles and EVs and that is first half we proceed it with including and deploying it to automobile and EV breaking system then we add extra radar for findingthe distance and pace of coming automobile and folks as properly with actual time Picture processing we additionally add particular person and automobile visitors density monitoring system in similar ADAS system
