Reference Design For Automotive Aspect Mirrors Motor Management

Reference design by Texas Devices (TI) for a easy motor driver for energy folding facet mirrors for cars.

Reference Design For Automotive Aspect Mirrors Motor Management
Rear view mirror and facet mirrors are one of the important a part of a automobile or different bigger car that allows the motive force to test the highway and visitors of the rearside of a automobile. Whereas the rear view mirror is positioned contained in the cabin of the automobile which makes it simple to regulate, the facet mirrors are positioned exterior the car that makes it tough to open and shut. In an effort to simplify the duty and automate the method of closing or opening the facet mirrors, Texas Devices have created a reference design that may allow a person to open or shut the facet window from the cabin itself.

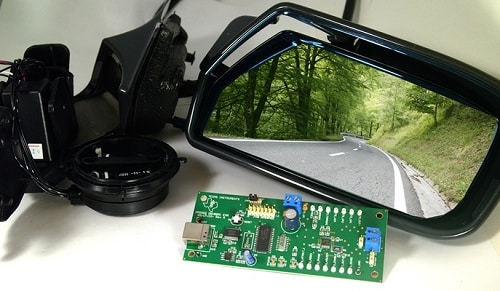

TIDA-00145 from TI is a reference design for the motor driver of an auto folding mirror. This design options two analysis modules (EVMs) to allow an easy-to-use platform to display the potential and efficiency of motor drivers for power-folding facet mirrors.
The reference design gives varied built-in automotive safety options resembling overcurrent, thermal, shoot-through, UVLO and wide-input voltage (extensive VIN) vary.

This motor driver offers the required options to outlive a harsh automotive atmosphere.
The reference design has a single H-Bridge motor driver with an built-in safety. It has a working voltage from 8-V to 38-V enter provide vary that’s appropriate for each EVs and ICE engine car because it helps +12-V trade customary provides. The EVM additionally includes a simple to make use of GUI. The TIDA-00145 additionally helps a brake mode that permits the motor to cease rapidly and has a 2-pin management interface for motor operation. The reference design is AEC-Q100 suitable making it appropriate to be used in harsh automotive atmosphere with excessive vibrations.

This reference design has been examined by TI. It comes with complete software program, firmware libraries, instruments, battery, and so forth. You could find further knowledge in regards to the reference design on the corporate’s web site. To learn extra about this reference design click on right here.
