Distant Managed Sizzling Wheels Automobile

Distant Managed Sizzling Wheels Automobile
Remark errors or corrections discovered for this circuit, and get the prospect to win massive!

Elements Required

  • Motor
  • Sizzling Wheels automobile
  • Fan Blade
  • Popsicle stick
  • 3.7-volt battery (lithium ion)
  • Matched distant controller
  • Battery connector
  • 4 Wires

Why the writer wished to make this mission?

The writer wished to show a standard sizzling wheels automobile to a RC (Distant Management) automobile utilizing discarded components from the previous damaged toys.


  • First take a Popsicle stick

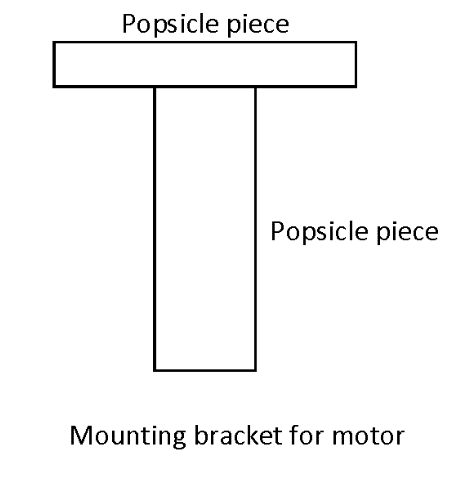

  • Make two items and glue them within the method given within the diagrams on the finish.
  • Glue the motor to the wood base.
  • Then glue the motor with the wood base to the automobile.
  • After they’re totally glued, join the wires of the motor to the accelerating motor ports or wires on the receiver.
  • Stick the battery to the highest of the automobile.
  • Join the battery connector to the voltage ports (V+, V-} on the receiver board.
  • Ultimately, glue the receiver board on high of the battery.

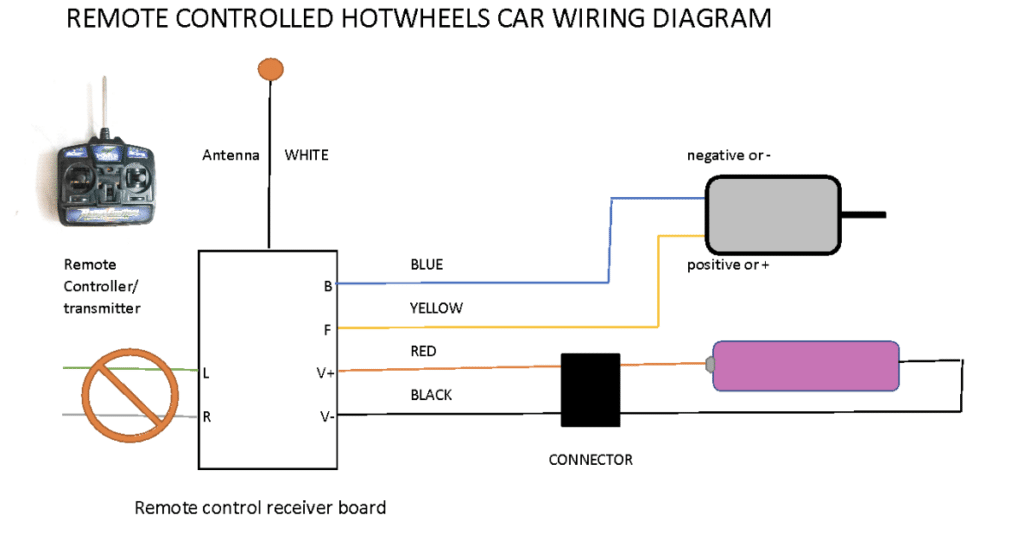

  • Distant management receiver board (YX-1924J) has 5 wires related to it.
  • Purple wire is constructive and black wire is unfavorable provide. These wires are related to the battery connector. Battery charger has additionally comparable connector. Lithium battery has an identical connector. So, the battery might be related to the RC board or to the charger as required.
  • Yellow and blue wires are related to the motor constructive and unfavorable provides respectively.
  • White wire is the antenna which is glued to the facet of motor.
  • Left and Proper wires or factors aren’t related.
  • Wires are joined as described. Insulating tape have to be mounted over the joints individually.

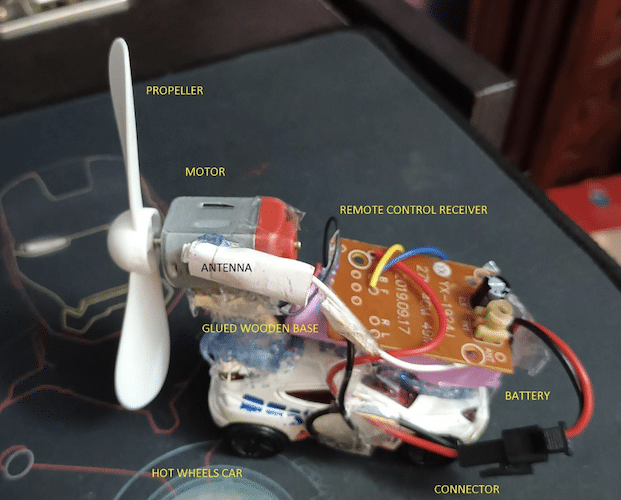

  • And also you accomplished your RC automobile.
  • Take pleasure in taking part in with it along with your matched distant controller.
  • Insert the batteries to the matching distant controller and change it on. It has joysticks for operation for ahead, backward, left, and proper and so on. We are going to use solely ahead and backward joystick. Transfer it. The fan mounted to the motor turns and the automobile strikes. Whether it is going reverse by the ahead command of RC controller, reverse the wires to the motor.
  • You may disconnect the battery and cost it with an appropriate charger.


Distant Managed Sizzling Wheels Automobile

Distant Managed Sizzling Wheels Automobile

Distant Managed Sizzling Wheels Automobile

Ok Anmol is an Electronics Fanatic and is just 9 12 months previous.
